Paper Making Machine Parts - Paper Machine UHMWPE Suction Box Cover

چین HUATAO LOVER LTD گواهینامه ها
چین HUATAO LOVER LTD گواهینامه ها
شرکت Huatao یک شرکت بسیار خوب است ، من بسیار مایل به همکاری با شما ، ایمن ، کارآمد ، حرفه ای ، صادقانه ، خوشحالم! با تشکر از شما برای ارائه خدمات و محصولات پایدار به من. ----- EUROPAT

—— EUROPT INDUSTRIAL

چت IM آنلاین در حال حاضر

Paper Making Machine Parts - Paper Machine UHMWPE Suction Box Cover

Paper Making Machine Parts - Paper Machine UHMWPE Suction Box Cover
Paper Making Machine Parts - Paper Machine UHMWPE Suction Box Cover Paper Making Machine Parts - Paper Machine UHMWPE Suction Box Cover

تصویر بزرگ :  Paper Making Machine Parts - Paper Machine UHMWPE Suction Box Cover

جزئیات محصول:
محل منبع: چين
نام تجاری: Huatao
شماره مدل: HT SUCTION BOX COVER
پرداخت:
مقدار حداقل تعداد سفارش: ۱ عدد
قیمت: Price accept negotiation
جزئیات بسته بندی: بسته استاندارد صادرات
زمان تحویل: 25 روز
شرایط پرداخت: اعتبارات اسنادی T/T، وسترن یونیون، MoneyGram
قابلیت ارائه: 500 تن در ماه
توضیحات محصول جزئیات
مواد: UHMWPE کاربرد: ساخت کاغذ
نام محصول: پوشش جعبه مکش منشاء: چين
برجسته کردن:

Paper machine UHMWPE suction cover,Paper making machine replacement parts,UHMWPE paper machine suction box

,

Paper making machine replacement parts

,

UHMWPE paper machine suction box

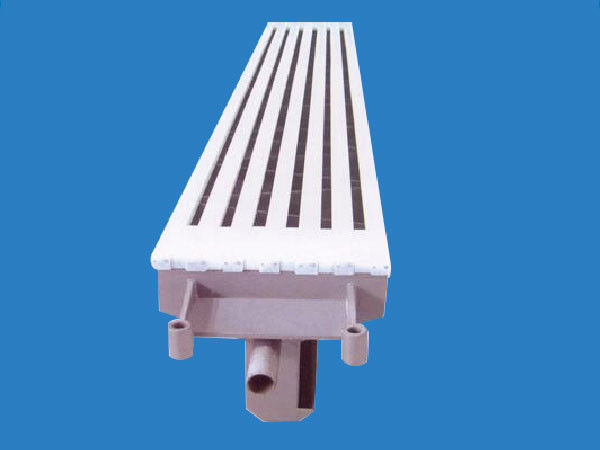

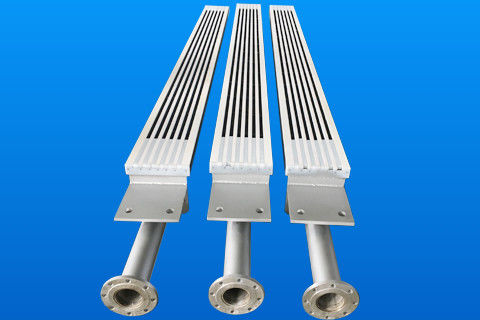

Paper Making Machine Parts - Paper Machine Suction Box Cover



UHMWPE(Ultra-high Molecular Weight Polyethylene) wear resistance dewater element is used for paper manufacturing machinery. Dewater element component includes: suction box covers, Doctor blade,Forming board,Scraper blade and so on. UHMWPE had used in parts of paper manufacturing machinery widely.



UHMWPE wear-resistance dewater element has Low friction coefficient, high wear resistance and excellent sliding properties. Paper manufacturing machinery have longer service life owing to UHMWPE wear-resistance dewater element.





Property Unit Value
Density g/cm3 0.93-0.96
Average molecular weight g/mol 3million- 10 million
Tensile strength (23°C in air) MPa 22
Breaking strength MPa 42
Tensile strain at break % 600
Charpy impact strength (notched) mJ/mm2 No break
Ball indentation hardness N/mm2 42
Shore D hardness -- 65-70
Abrasion % 70-80, steel = 100
Static Friction Coefficient -- ≤0.16
Kinetic Friction Coefficient -- ≤0.10
Water Absorption -- NIL
Elongation at break at 23 degress % ≥300
Temperature resistance °C -269 to +85
Melt Temperature °C 130-140





Advantage of paper machinery Dewatering elements:



1.Improve the service life of machinery after using UHMWPE dewater element.
2.Reduce the energy consumption of paper machinery.
3.UHMWPE has highly wear resistance, improving the service life and reducing the cost.
4.Abosn’s suction box covers and blades are made of UHMW-PE material .
Abosn’s dewatering elements in ultra high molecular weight polyethylene set themselves apart by the special sinter press procedure over a long period used to produce them;
5.As well as an extremely high molecular weight plus their extra additive that is specifically tailored to paper machines.
6.All these benefits ensure what is an outstanding service life for plastic coupled with a low coefficient of friction.
7.No adhesion Excellent chemical resistance.
8.Suction box covers, Forming boards, Foil covers, Doctor Blades, Scraper blades , Deflector blades, Profile strips etc.



Paper Making Machine Parts - Paper Machine UHMWPE Suction Box Cover 0  Paper Making Machine Parts - Paper Machine UHMWPE Suction Box Cover 1
