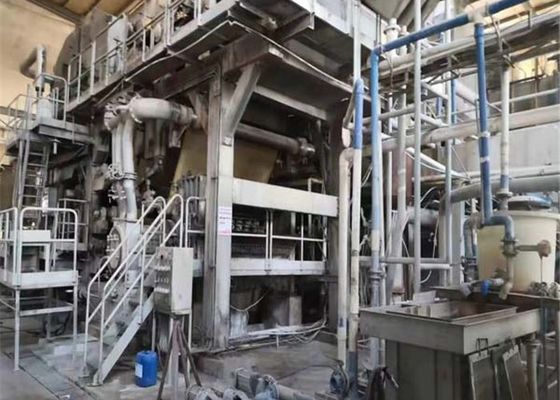

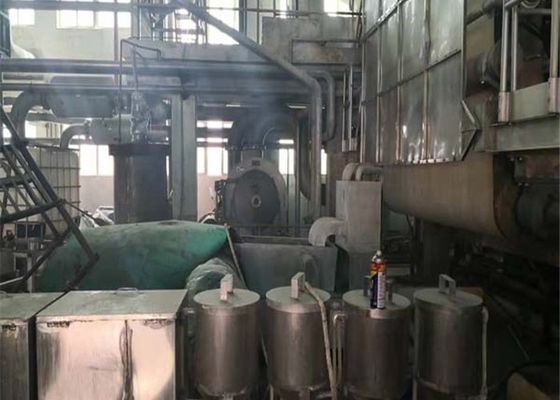

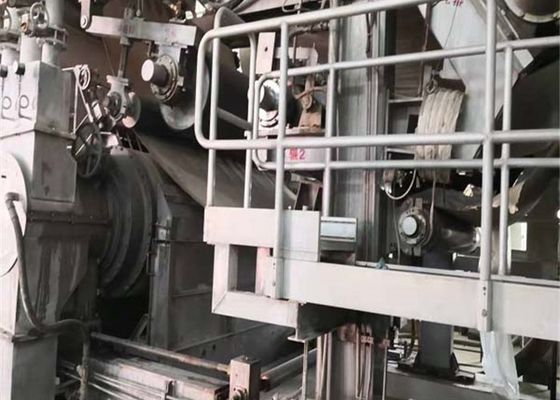

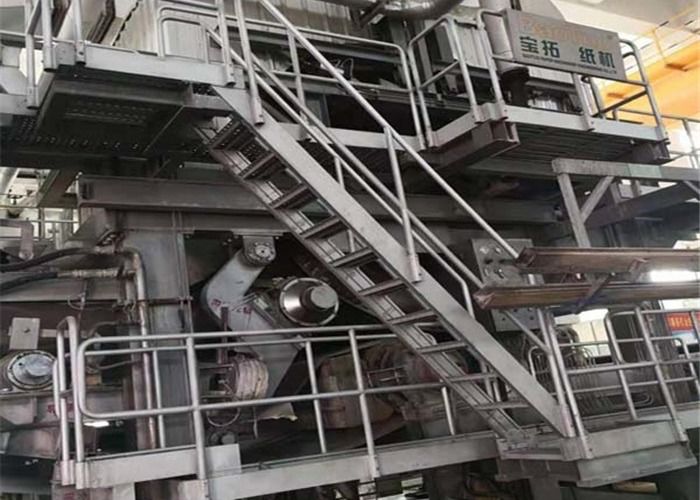

BAOTUO TISSUE MACHINE WITH HIGH SPEED - NO.1 Toilet Paper Roll Making Machine

BAOTUO TISSUE MACHINE WITH HIGH SPEED - NO.1 Toilet Paper Roll Making Machine

1. Trimmed paper width:2880MM

2. Working speed:750m/min

3. Design speed850m/min

4. Capacity: 30- 35TPD

5. The weight of paper:13-18GSM

6. Year of Make: 2017 and running in 2018 (Less than a year of use)

                                     (stopped in China due to Environmental issue of Govt)

7. Paper roll balancing:900m/min

8. Head box spray width:2880mm

9. Wire width:3210mm

10. Wire cage diameter:1200mm

11. Roll width:2860mm

13. Hot air system design temperature:160-170℃

14. Air hood blowing speed:50-80m/s

15. Yankee dryer diameter:3660mm

16. Yankee dryer width:3150mm

17. The maxinmum width of Yankee dryer:3320mm

18. Yankee dryer normal operating pressure: ≤0.5MPA

19. Yankee dryer steam design pressure: 0.5MPA
