HUATAO LOVER LTD
خانه محصولاترولر صنعتی

Vacuum Suction Press Roll for High and Medium Speed Paper Machines with Customizable Size

چین HUATAO LOVER LTD گواهینامه ها
چین HUATAO LOVER LTD گواهینامه ها
شرکت Huatao یک شرکت بسیار خوب است ، من بسیار مایل به همکاری با شما ، ایمن ، کارآمد ، حرفه ای ، صادقانه ، خوشحالم! با تشکر از شما برای ارائه خدمات و محصولات پایدار به من. ----- EUROPAT

—— EUROPT INDUSTRIAL

چت IM آنلاین در حال حاضر

Vacuum Suction Press Roll for High and Medium Speed Paper Machines with Customizable Size

Vacuum Suction Press Roll for High and Medium Speed Paper Machines with Customizable Size
Vacuum Suction Press Roll for High and Medium Speed Paper Machines with Customizable Size Vacuum Suction Press Roll for High and Medium Speed Paper Machines with Customizable Size

تصویر بزرگ :  Vacuum Suction Press Roll for High and Medium Speed Paper Machines with Customizable Size

جزئیات محصول:
محل منبع: چین
نام تجاری: HUATAO
گواهی: ISO
شماره مدل: رول فشار مکش
پرداخت:
مقدار حداقل تعداد سفارش: 1 عدد
قیمت: 2000USD/pc-5000USD/pc
جزئیات بسته بندی: کیس های چوبی
زمان تحویل: 1-3 ماه
شرایط پرداخت: L/C، T/T
قابلیت ارائه: 10000 عدد در سال
توضیحات محصول جزئیات
نام محصول: کاغذ سازی دستگاه مکش وکیوم پرس رول مکش پرس رول پرس رول لاستیکی کلمات کلیدی: رول فشار مکش خلاء، رول فشار مکش، رول فشار جمبو، رول فشار لاستیک
عناصر رول پرس: پوسته، ژورنال، خانه حامل، حامل، و غیره پوسته: چدن یا فولاد ضد زنگ
مجله: فولاد ریخته شده یا آهن ریخته گره دار پوشش: لاستیک یا PU و سوراخ کور
بلبرینگ: مارک ها را می توان مشخص کرد و غیره مسکن بلبرینگ: چدن خاکستری یا چدن گره ای یا چدن گرافیت کروی
برجسته کردن:

غلتک پرس وکیوم برای ماشین آلات کاغذ,غلتک پرس وکیوم صنعتی قابل تنظیم,غلتک وکیوم ماشین کاغذ با سرعت بالا

,

Customizable industrial suction press roll

,

High-speed paper machine vacuum roller

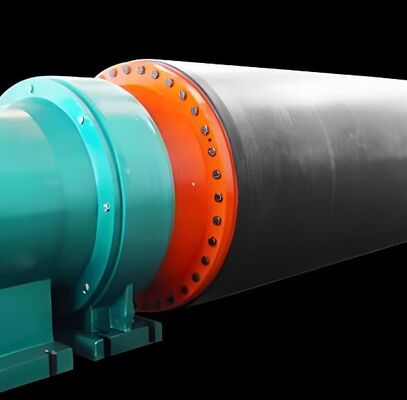

Paper Making Machine Vacuum Suction Press Roll Rubber Press Roll Cast Iron or Stainless Steel
Product Description

Paper Making Machine Vacuum Suction Press Roll plays a crucial role in the dewatering and paper shaping process in press sections of paper machines. With increasing operating speeds, paper factories demand higher performance from press rolls to achieve lower energy consumption.

Vacuum Suction Press Roll Basis Information

Main types include blind drilled press rolls, grooved press rolls, flat press rolls, artificial aging stone rolls, and support rolls for dryers. The vacuum press roller consists of body layer, wall layer, and roller shell inner cavity, featuring connected through holes and blind holes for optimal performance.

Key advantages:

  • Removes more water from wet paper compared to normal squeezing
  • Improves paper dryness while reducing crushed paper
  • Provides more uniform dehydration across the banner width
  • Maintains stable felt condition

Customization options:

  • Size and technical parameters determined by user requirements
  • Special designs available for unique needs
  • Trim width options from 1092 to 5500
Vacuum Suction Press Roll Application

Primarily used in medium and high speed paper machines, typically paired with stone rollers in the upper position. Essential for water removal and paper shaping in press sections.

Technical Specifications
Component Material Options
Shell Cast Iron or Stainless Steel
Journal Cast Steel or Nodular Cast Iron
Coating Rubber or PU with Blind Drill
Bearing Brands can be specified
Bearing housing Gray Cast Iron, Nodular Cast Iron, or Spheroidal Graphite Cast Iron
About Huatao Group

Founded in 2008, Huatao Group is a professional supplier with over 15 years of experience manufacturing rollers for:

  • Paper Industry: forming rollers, vacuum couch rollers, press rollers, dryer cylinders, and more
  • Plastic & Rubber Industry: chill rollers, treatment rollers, winding cores, and coating drums
  • Nonwoven Fabric Industry: cylinder rollers, guide rollers, and embossing rollers

Our products are exported to more than 96 countries with excellent reputation. We understand unique customer requirements and match them with superior quality solutions from our network of domestic factories.

Vacuum Suction Press Roll for High and Medium Speed Paper Machines with Customizable Size 0 Vacuum Suction Press Roll for High and Medium Speed Paper Machines with Customizable Size 1

We are committed to ensuring customers purchase and use HUATAO products with complete confidence, backed by ongoing service support.
